DRTS Round Dripper Perforator

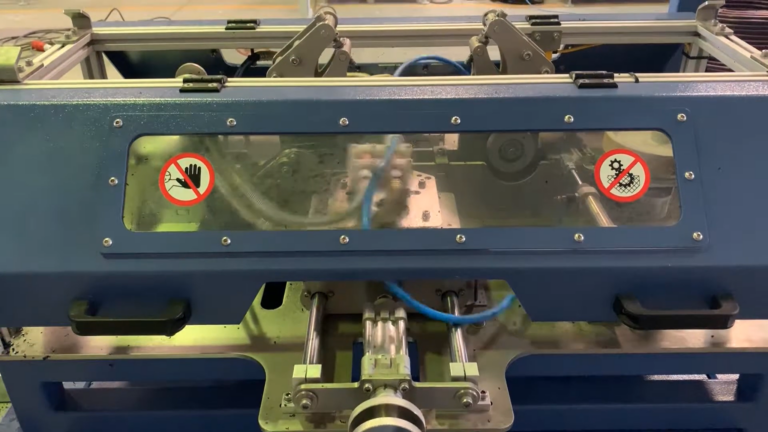

The DRTS Servo Perforator is part of the DRTS Round dripper production line. It can also be easily installed on any existing lines as a standalone unit. The perforator has its own line speed encoder making it an autonomous machine and is capable of perforating up to 500 drippers per minute. Dripper spacing measurement as well as historical reports can be retrieved directly from the PLC or via USB port. Additionally the unit can be offered with an online Hole Inspection Vision System that not only provides online QC control, but automatically adjust the hole position.
What is the Function of a Dripper Perforating Machine?

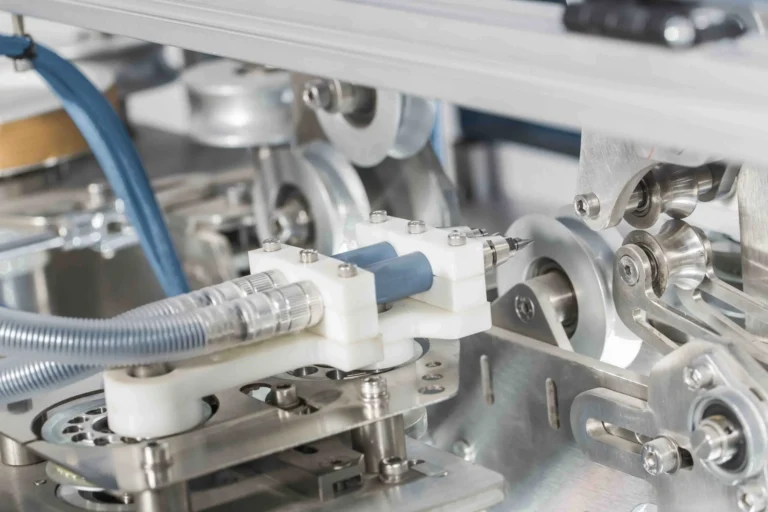

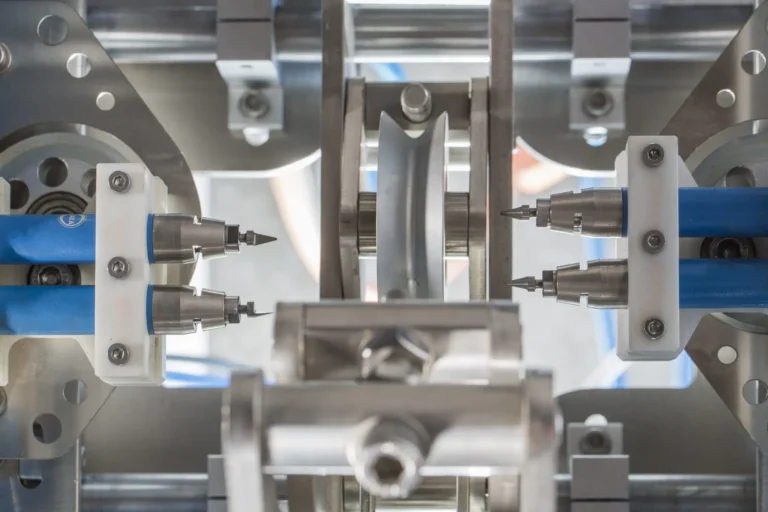

Our round dripper perforating machine punctures pipe to create equally spaced water outlets for drip irrigation pipe. The drilling mechanism is set via HMI to perforate pipe at the desired location relative to the dripper pools. This perforator machine can punch up to 4 holes per dipper at varying dripper lengths at up to 500 drippers perforated a minute.
Dripper Auto Correction Vision System
The perforator machine can also be combined with a dripper hole inspection system that uses cameras to ensure that holes are being drilled in the correct place and at equal intervals. The system can automatically recognize and correct perforation errors allowing you to produce only high quality pipe and save on scraped coils.
Ensure that you only produce the highest quality drip irrigation pipe that performs consistently with minimal variance between each dripper with our servo perforator machine.
Drip Irrigation Pipe Perorator Technical Specifications
- Capacity: 500 dripper/min. 30-70mm length of drippers
- No of Holes: 1-4 holes
- Suitable for Diameter: 12mm – 20mm
- Minimum Spacing: 15 cm
- Pipe Speed: Up to 120 m/min
- Center Height: 1060mm
- Dimensions: L:1400mm W:1150mm H:1250mm

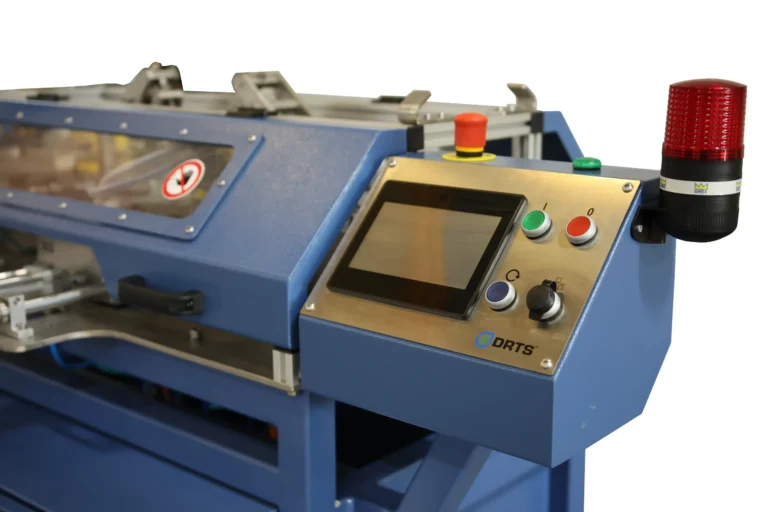

- PLC Panel: 5.7 inch Touchscreen – KOLLMORGAN/SIEMENS
- Servo Driver + PLC: 2x KOLLMORGAN/SIEMENS
- Servo Motor: 2x KOLLMORGAN/SIEMENS
- Air Motor: 70.000 RPM
- Air Requirement: 6 BAR
- Vision System: Optional
- Plastic Chip Vacuum: Optional
Learn More About Our Round Drip Irrigation Pipe Production Line
