PE Pipe Cutting Machine

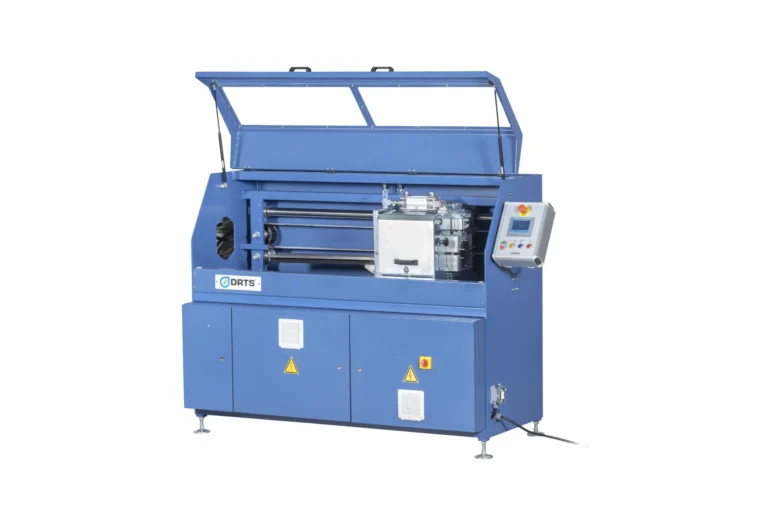

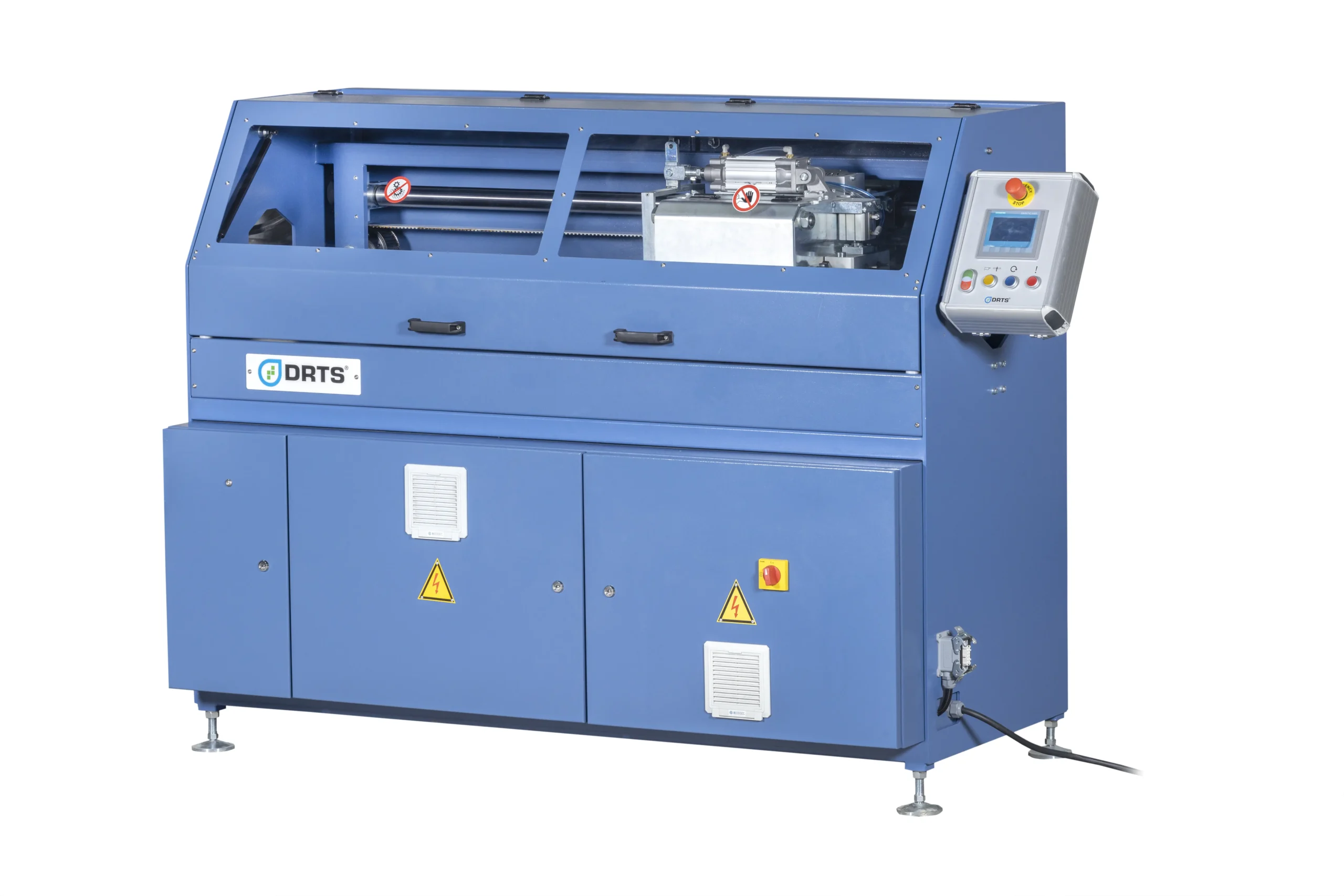

DRTS Pipe Cutter

The DRTS Pipe Cutters are specifically designed for PE, PPR and PVC pipes from 16mm – 630mm (see drip irrigation cutters for diameters 6mm – 32mm). Our cutters are chipless for PE and PPR pipes up to 250mm in diameter and comes with a chamfer option for PVC pipes ranging from 40mm – 630mm.

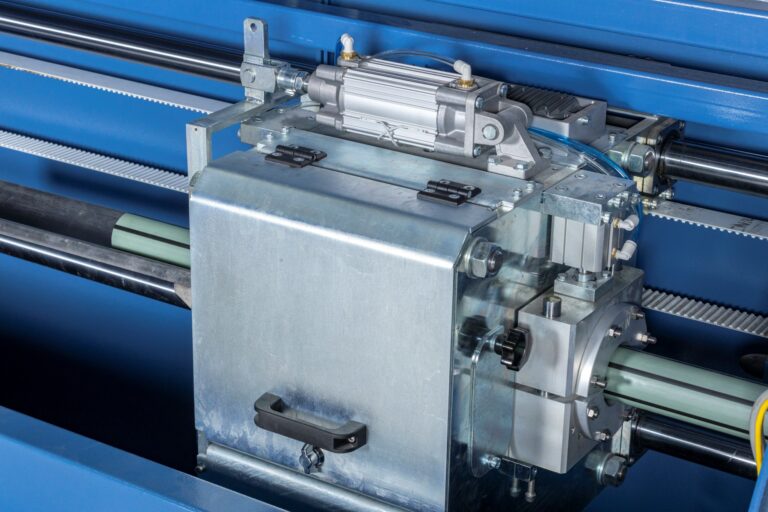

Our cutters are in compliance with modern safety standards and manufactured to operate in complete synchronization with your extrusion line. The trolley movement is driven either by a servo motor or by pneumatics and the pipe cutting diameter does not require mechanical adjustment but, can be set using the PLC control system.

Models Specification
ModelPipe Dia (mm)Max Cutting ThicknessCutting Speed (m/min)
DMPT 7516 - 75 mmPE:15 mm PVC: 4 mm30 m/min
DMPT 16050 - 160 mmPE: 22 mm PVC: 10 mm22 m/min
DMPT 25050 - 250 mmPE: 28 mm PVC: 18 mm12 m/min
DMPT 40063 - 400 mmPE: 42 mm PVC: 25 mm
8 m/min
DMPT 630160 - 630 mmPE: 60 mm PVC: 25 mm4 m/min

Related Products

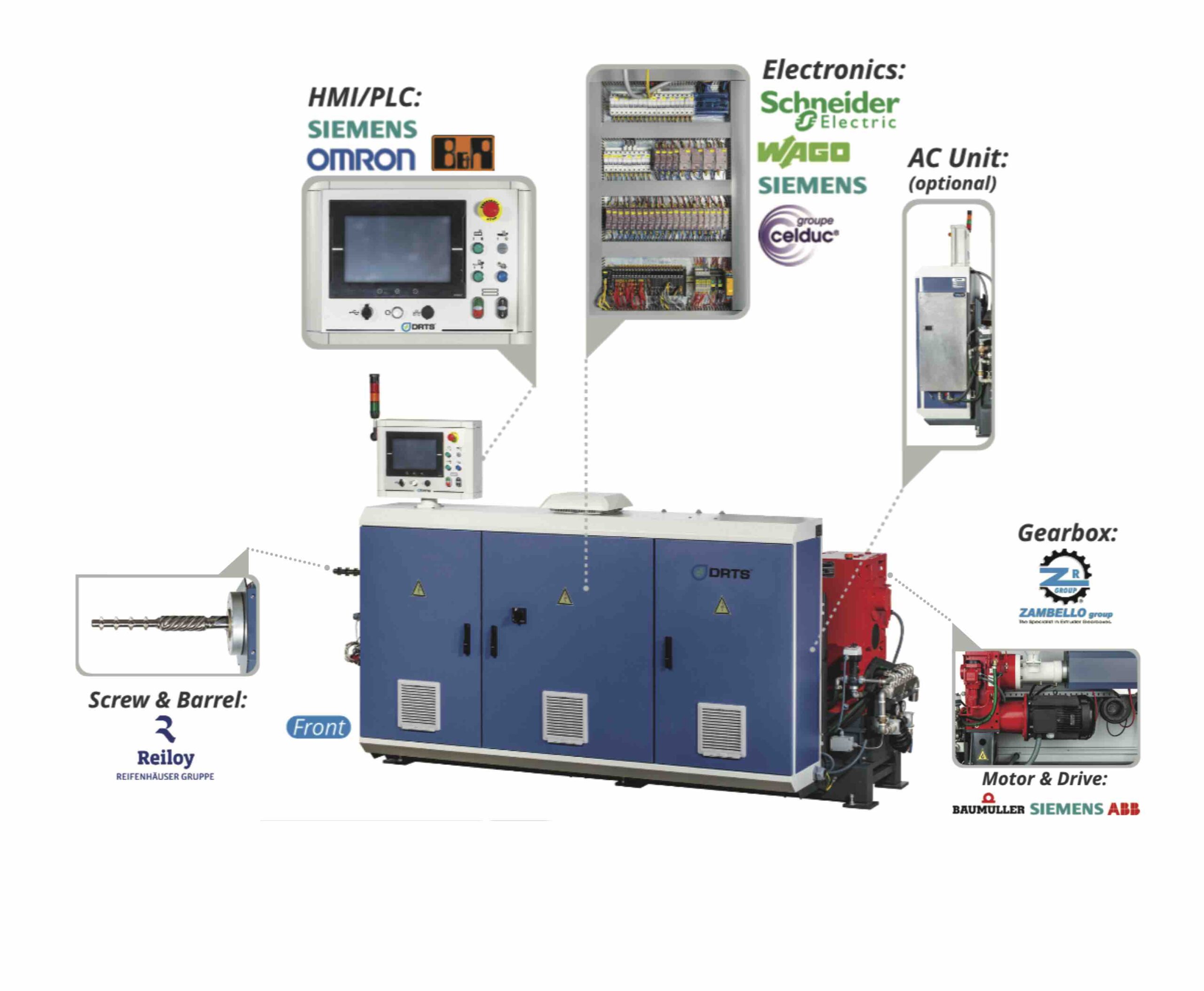

DRTS provides Single Screw and Twin Screw extrusion solutions with...

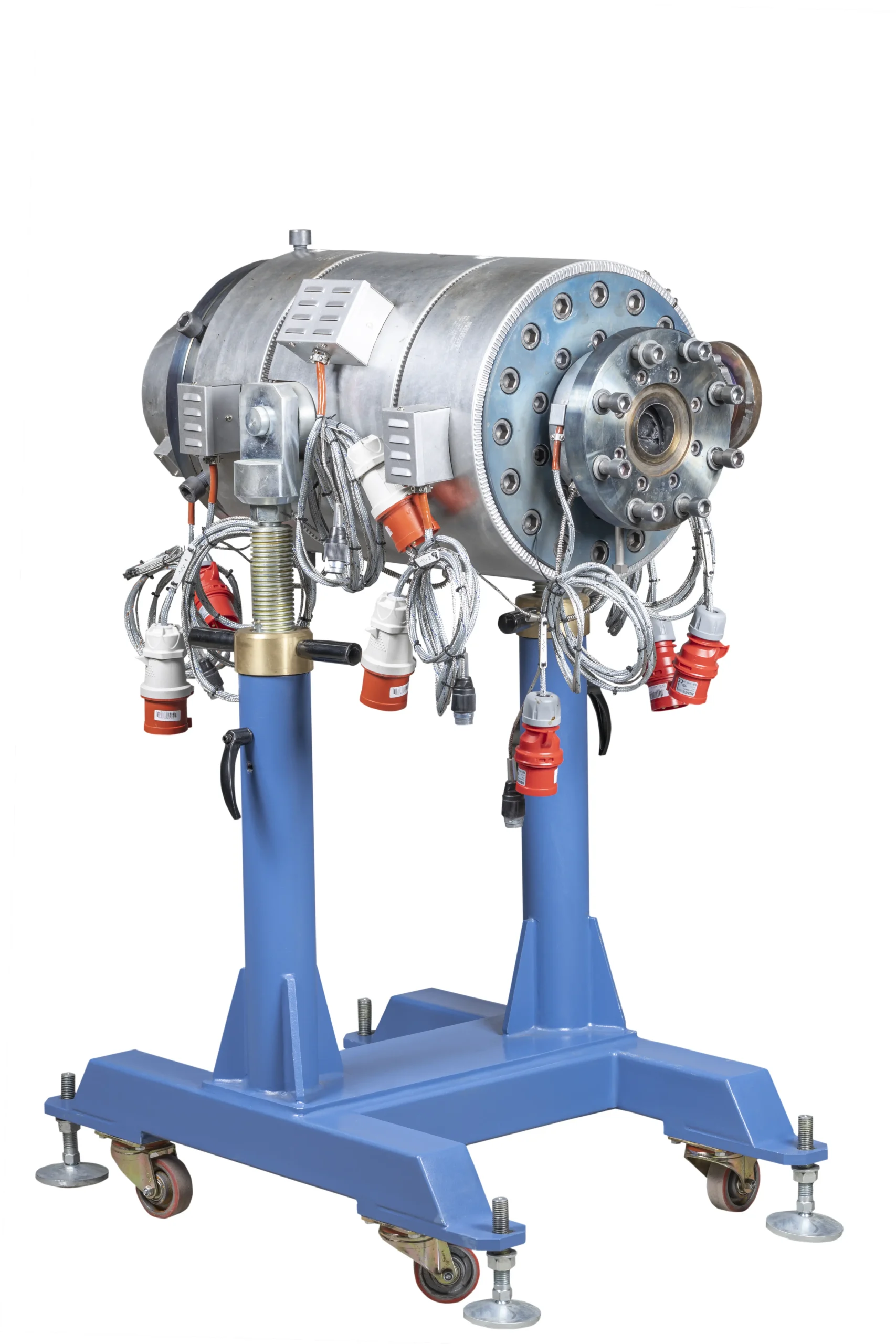

The DRTS 3 Layer Pipe Extrusion Die-Head offers some of...

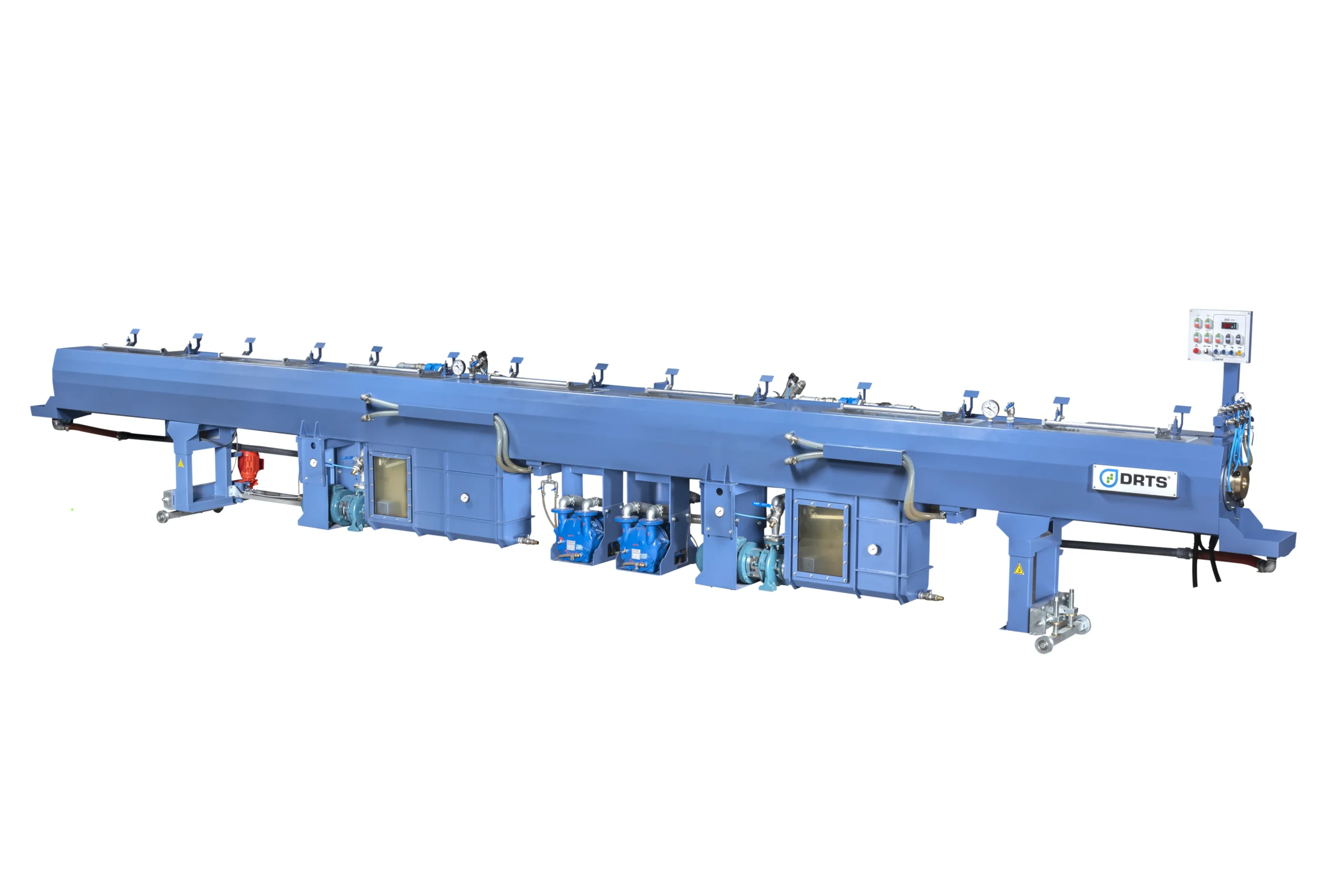

All of our DRTS vacuum and cooling tanks are manufactured...

DRTS Pipe Cutters are specifically designed for PE, PPR and...

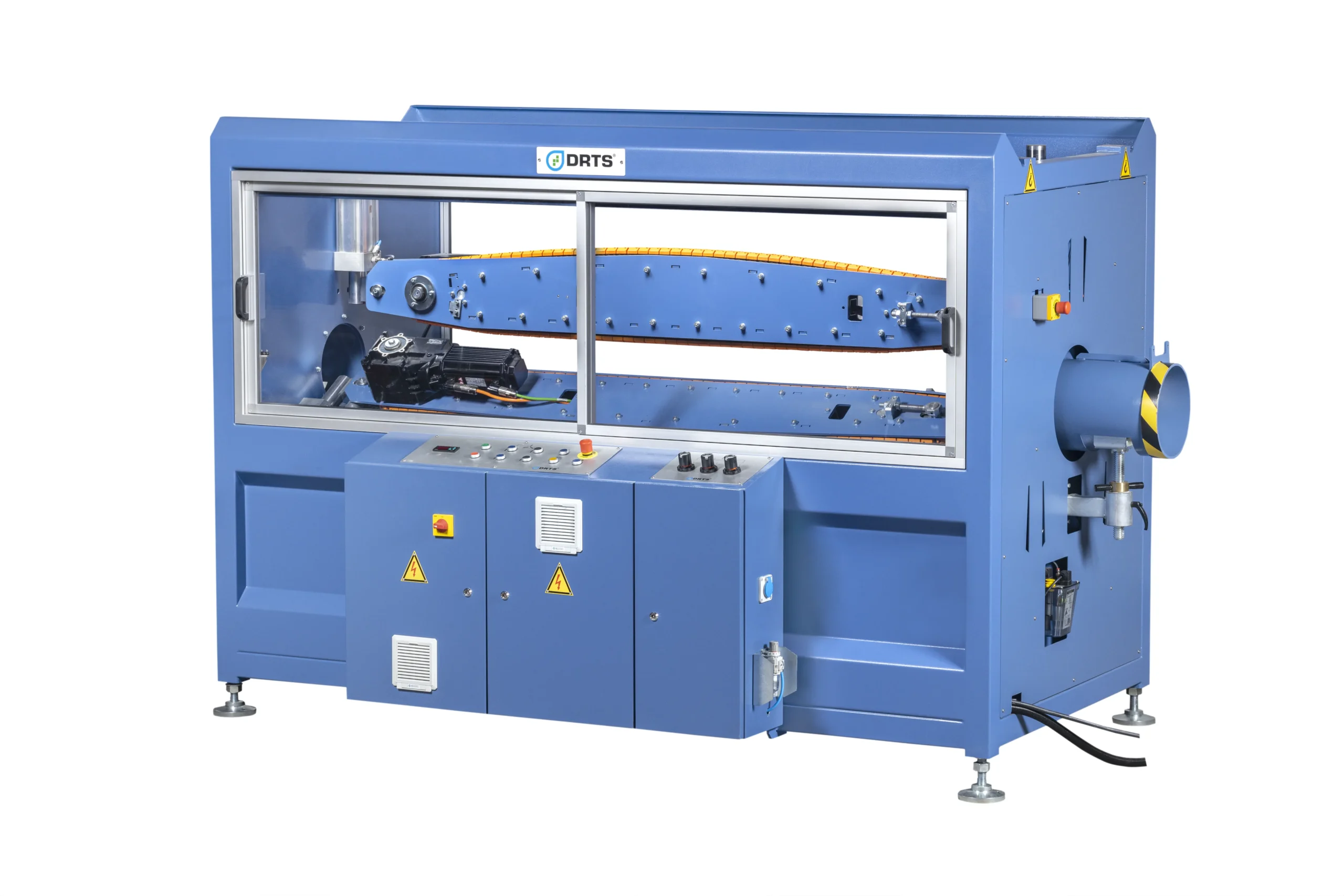

Our Pipe Haul-Offs (Pipe Pullers) are servo motor driven to...

Fully automate your PE pipe production line with our fully...

The DRTS Pipe Coilers provide an innovative solution for coiling...

Save your team the hassle of manually wrapping new coils....

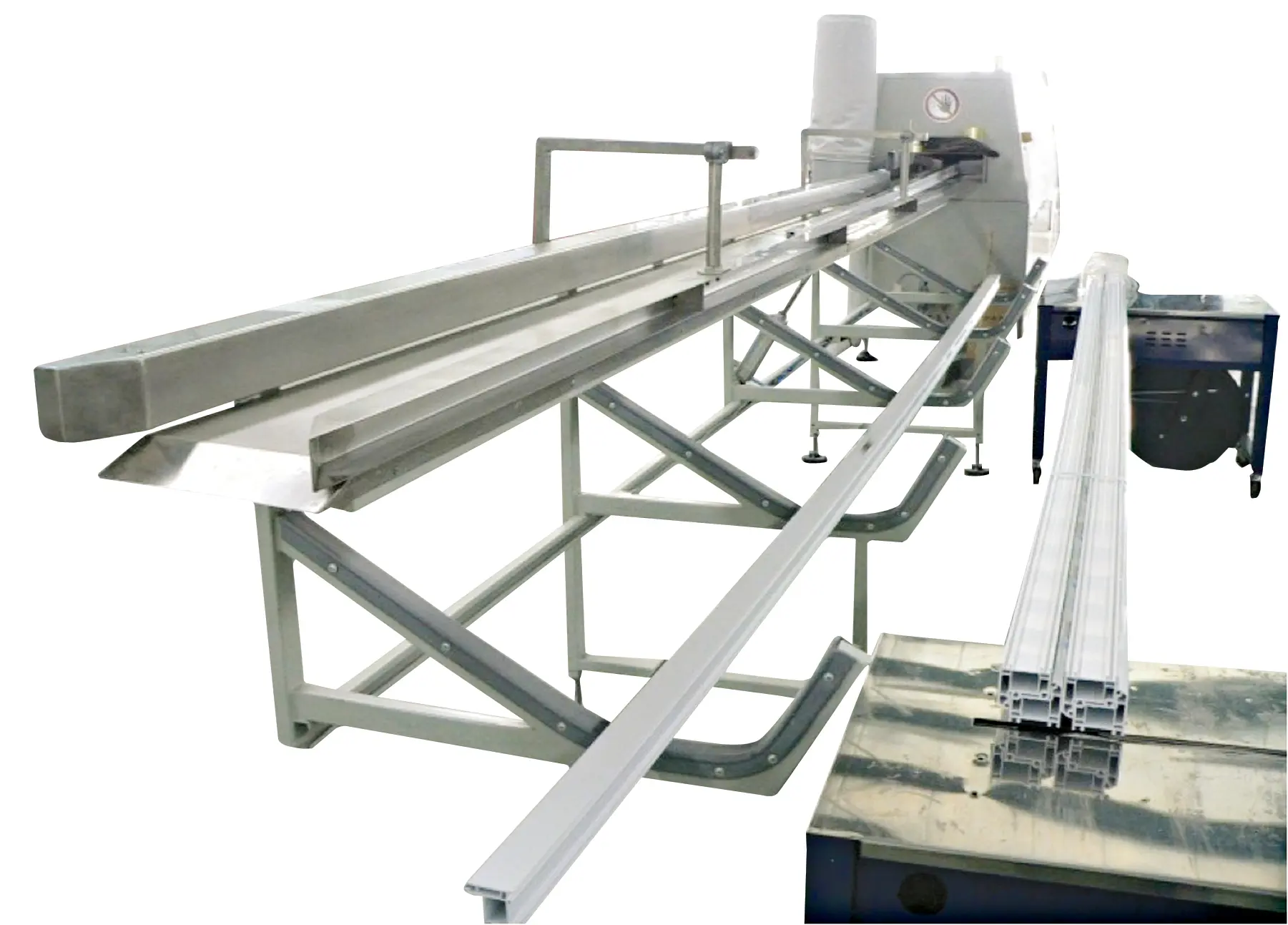

DRTS Tipping Tables can be custom made to fit any...

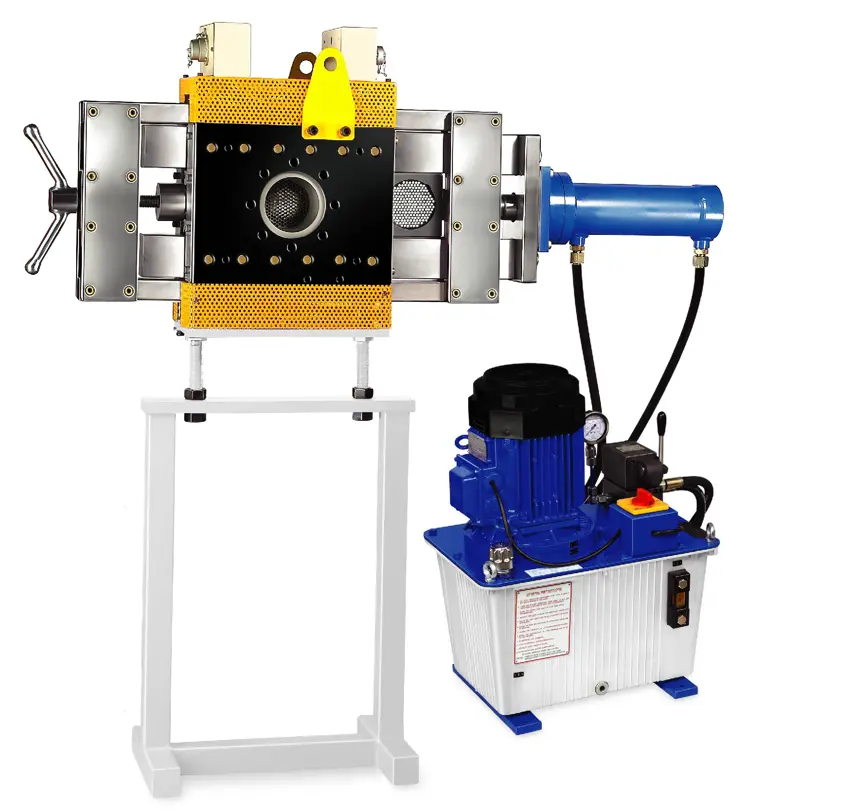

At DRTS, we offer a full range of screen changers...
